Wallbox 32a Electric Vehicle Charging Station TYPE 2 7kw 11kw 22kw IP65 EV Wallbox Charger

Key Attributes

Product Detail

Product Tags

Specifications

Interface Standard	IEC 62196	Output Power	22 kW(29.50hp)
Input Voltage	AC 480V	Output Current	AC
Condition	New	Purpose	for replace/repair
Brand Name	Posung	Model Number	VCS-MB-22
Place of Origin	Guangdong, China	Place of Origin	Shantou, China
Station Protection rank	IP65	Cable Protection rank	IP54
Power Cord	open ready to wire into electricity	Charging cable	5M Type 2 (TPU Jacket)
Start mode	RFID card swipe / APP optional	Station size	L180xW180xH85 (mm)
Product features	Charging status and working error displayed by LED indicators.	Operating temperature	-30℃ to 50℃
RCD	type B (30mA AC + 6mA DC)	Warranty	2 years(both cable and station)

Charger Model & Spec

Model No.	Rated Current	Power	Charging Cable	Certificate
VCS-MB-7	200-240V / 32A	7kW	3x6.0mm²+0.5mm²	CE, ROHS,UKCA
VCS-MB-11	380-440V / 16A	11kW	3x2.5mm²+0.5mm²	CE, ROHS,UKCA
VCS-MB-22	380-440V / 32A	22kW	5x6.0mm²+0.5mm²	CE, ROHS,UKCA

Certificates & QC	CE, UKCA, ROHS,ISO

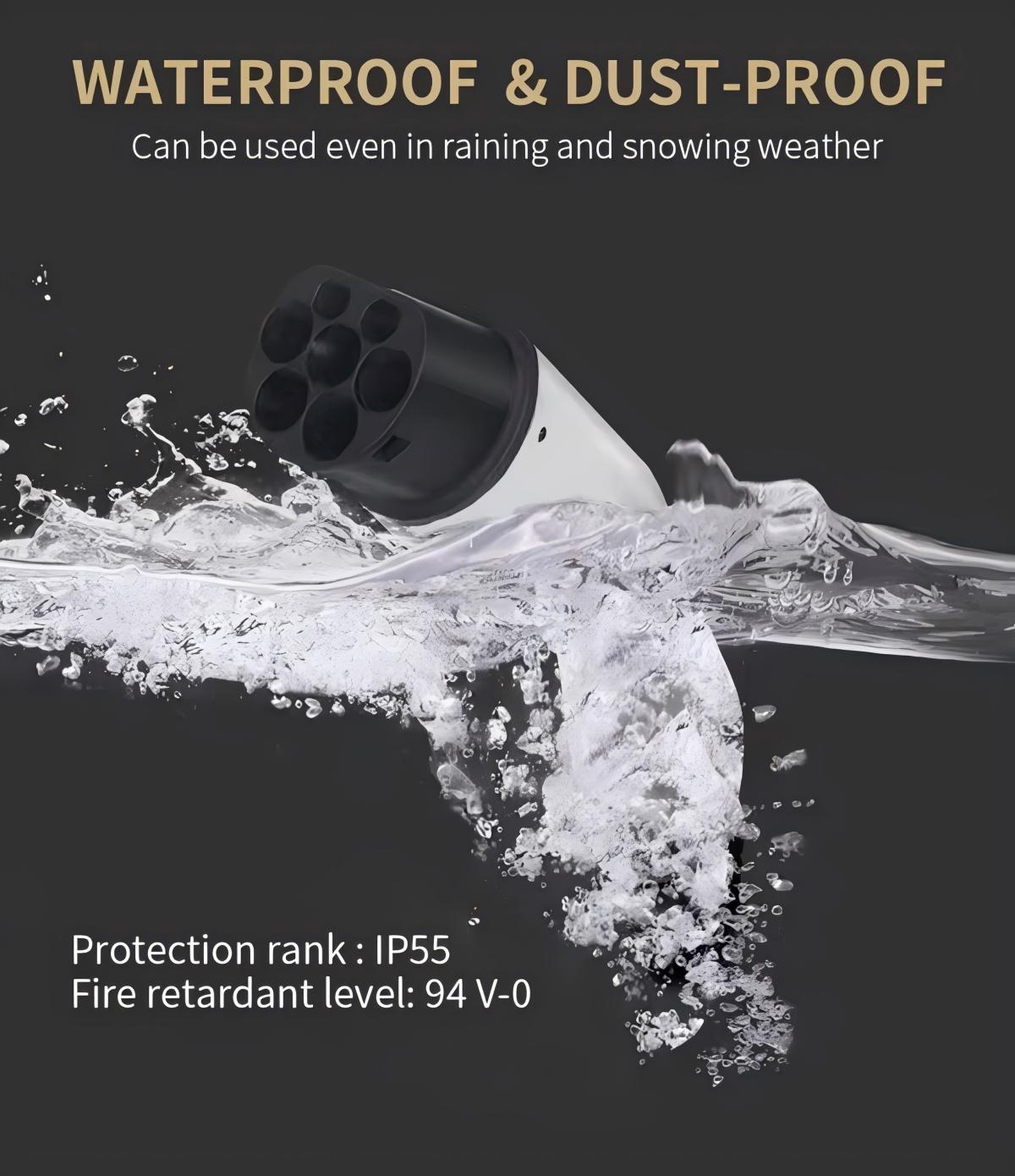

Protection rank	IP55 Cable; IP54 Station
LCD display	without screen & with screen(opt)
RCD	type B (30mA AC + 6mA DC)
Power cord	open ready to wire into electricity
Charging cable	5M Type 2 (TPU Jacket)
LED indicator	R/G/B
Start mode	RFID card swipe / APP / Plug and Play(opt)
Station size	180x180x85 (mm)
Warranty	2 years (both cable and station)
lead time	30-35 days after deposit payment
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on station box or cable head
Package	Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton
Features	Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP54, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen

EN Standard Strong Patience.

The charging cable meets the latest EN

standard request of an electric vehicle

charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c,

therefore withstanding colder conditio-ns.

TPU Cable.

Highly resistant to bending, protecting

the internal wiring harness to function

normally under repeated bending
conditions.

ClimateFriendlyStronger&Anti-aging
Thehalogen-freechargingcable isclimate
friendly,meetingtheEU'sandUSA's
environmental standards.Thetight,strong
molecularstructureprovidesalong-lasting
chargingcable solution,ensuringgreaterservice
life.

ArcingDesign
Unique self-cleaning' design
ensures that impurities on the
surface of the pins can be removed
during each plug-inprocess.

ErgonomicDesignandIntegratedDesign
Angled horizontal bending design,
in linewiththehabitofmanual force
whichallowsforconvenientplugging&
unplugging.
K10ratedwithanintegrateddesignensuring
thatyoucanchargesafelyinallweather
conditions.

BetterConductivity
Silverplatingonthepins ensuresgreater
conductivity,charging efficiencyand
reducesheatgeneration.

TemperatureMonitoring
Detectsif the temperatureishigher
thanthe‘setsafe'value,if thisoccurs
thecurrentwillautomaticallybecutoff

CAUTION

1.Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
