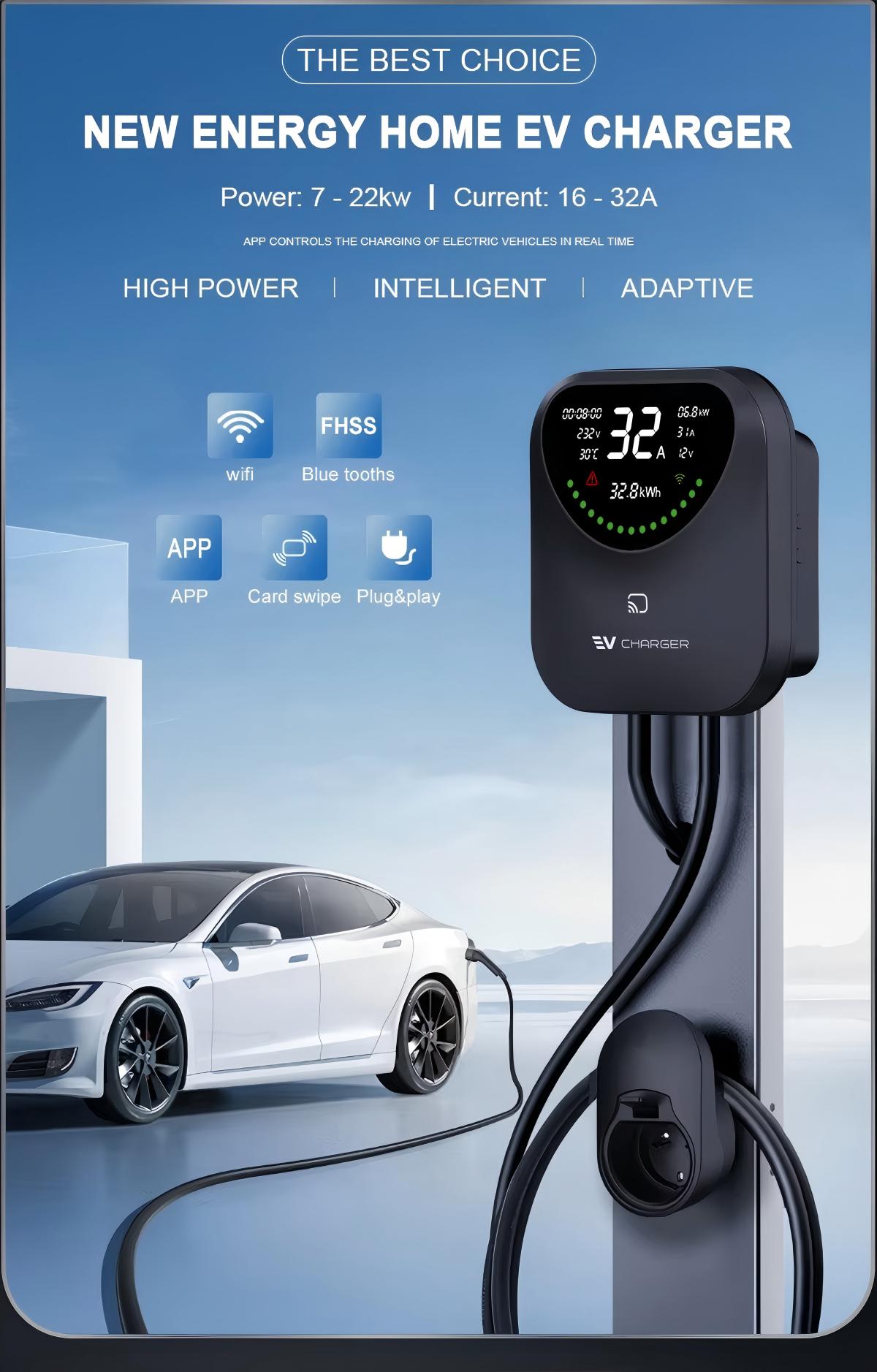

11kw/22kw GB/T AC Mode 3 Level 2 Wallbox EV Charger Evse Electric Vehicle Charging Station
Specifications
| Interface Standard | TYPE 2 | Output Power | 22KW(29.5hp) |
| Input Voltage | AC 480V | Output Current | AC |
| Condition | New | Purpose | for retrofit/upgrade |
| Brand Name | Posung | Model Number | VCS-Z4-22S |
| Place of Origin | Guangdong, China | Certificates & QC | TUV-Mark, CE, CB, RoHS, ETL, FCC, Energy Star, UL(cable) |
| Station Size | L250 x W250 x H90 (mm) | Protection rank | IP65 / TYPE 6 |
| Power cord | open ready to wire into electricity | Charging cable | 5M Type 2 (TPU Jacket) |
| RCD | 30mA AC + 6mA DC/CCID20 | Input power | 100-250V; 280-440V |
| LCD display | Yes | Operating temperature | -30℃ to 50℃ |
| Warranty | 2 years (both cable and station) |
| Certificates & QC | TUV-Mark, CE, CB, RoHS, ETL, FCC, Energy Star, UL(cable) |
| Protection rank | IP65 / TYPE 6 |
| LCD display | Yes |
| RCD | 30mA AC + 6mA DC / CCID20 |
| Input power | 250V, 480V |
| Charging cable | 5M Type 2 (TPU Jacket) |
| Power cord | open ready to wire into electricity |
| Start mode | Card swipe / APP / Plug&play |
| Station size | L250 x W250 x H90(mm) |
| Warranty | 2 years (both cable and station) |
| lead time | 30-35 days after deposit payment |
| Payment Terms | T/T(30% advanced payment ,the rest 70% balance should be paid before shippment) |
|
Electrical Protection |
Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
| Materials Applied | Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark, UKCA, CB. |
| Customizing Logo | Logo put on shell by laser on station box or cable head |
| Package | Insides: charging station; screws; hang plates; swiping card; user manual; optional (rest socket) Each in sponge inner tray, then in paper box, then 2 boxes into 1 master carton |
|
Features |
With Emergency stop button, and current switch, time book touch button Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP54, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen Optional function of current choice button to switch current from 8A-32A / 8-16A |
CAUTION
1.Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
