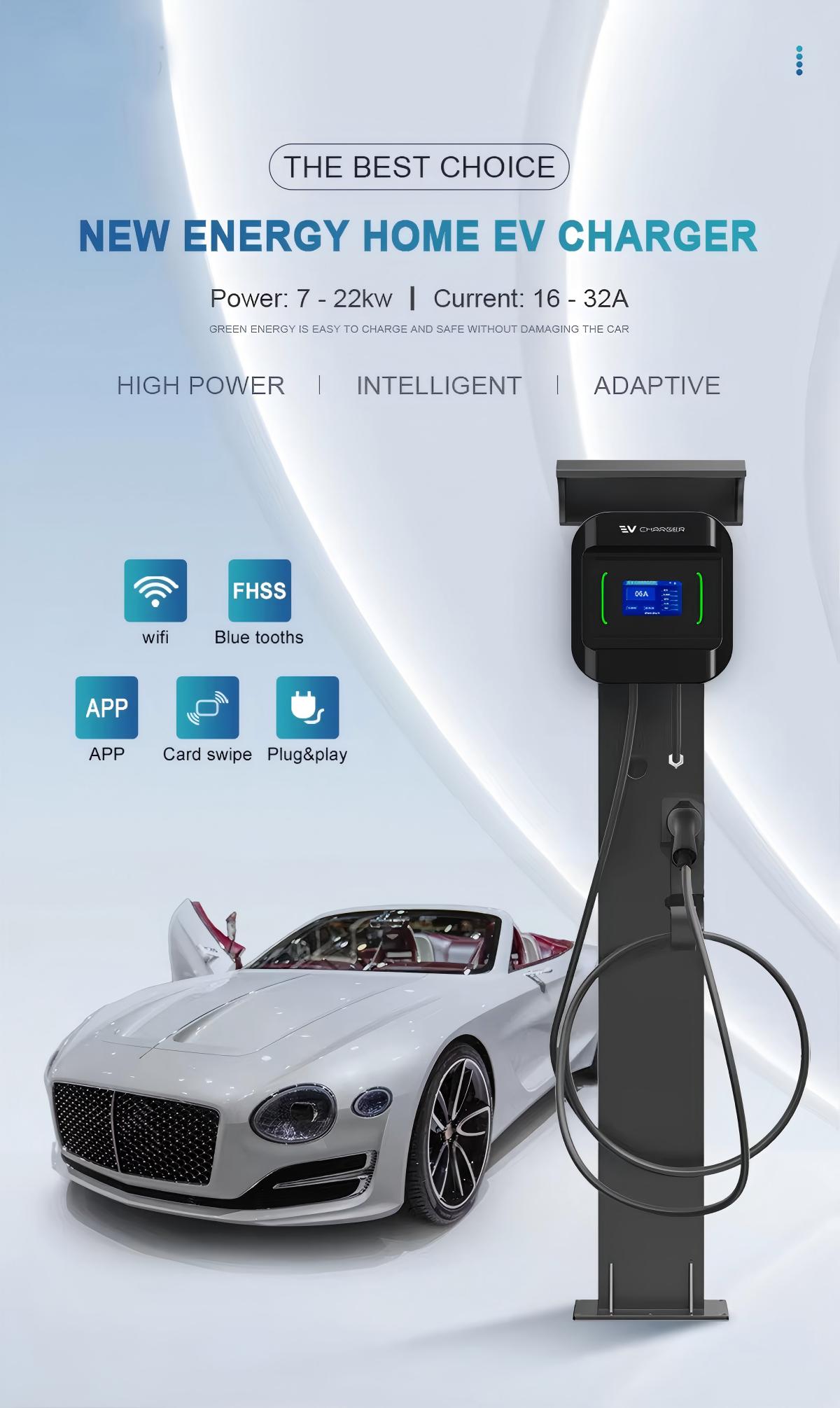

11kw Fast Charger Type 2 Wall Ev Charging Station Wallbox Ev Charger for Ev Cars BYD ID4 ID6
Specifications
| Interface Standard | TYPE 2 | Output Power | 11 kW(14.75hp) |
| Input Voltage | 480V | Output Current | AC |
| Condition | New | Purpose | for replace/repair |
| Brand Name | Posung | Model Number | VCS-Z41-11S |
| Place of Origin | Guangdong, China | Certificates & QC | CE(ICR lab), UKCA, RoHS , ISO |
| Station Protection rank | IP65 | Cable Protection rank | IP65 |
| Power cord | open ready to wire into electricity | Charging cable | 5M Type 2 (TPU Jacket) |
| LED indicator | red / blue / green | Input power | 250V max |
| Form of Electricity | 16A 3 Phase | Operating temperature | -30℃ to 50℃ |
| Optional | Card swipe / APP / Plug & play |

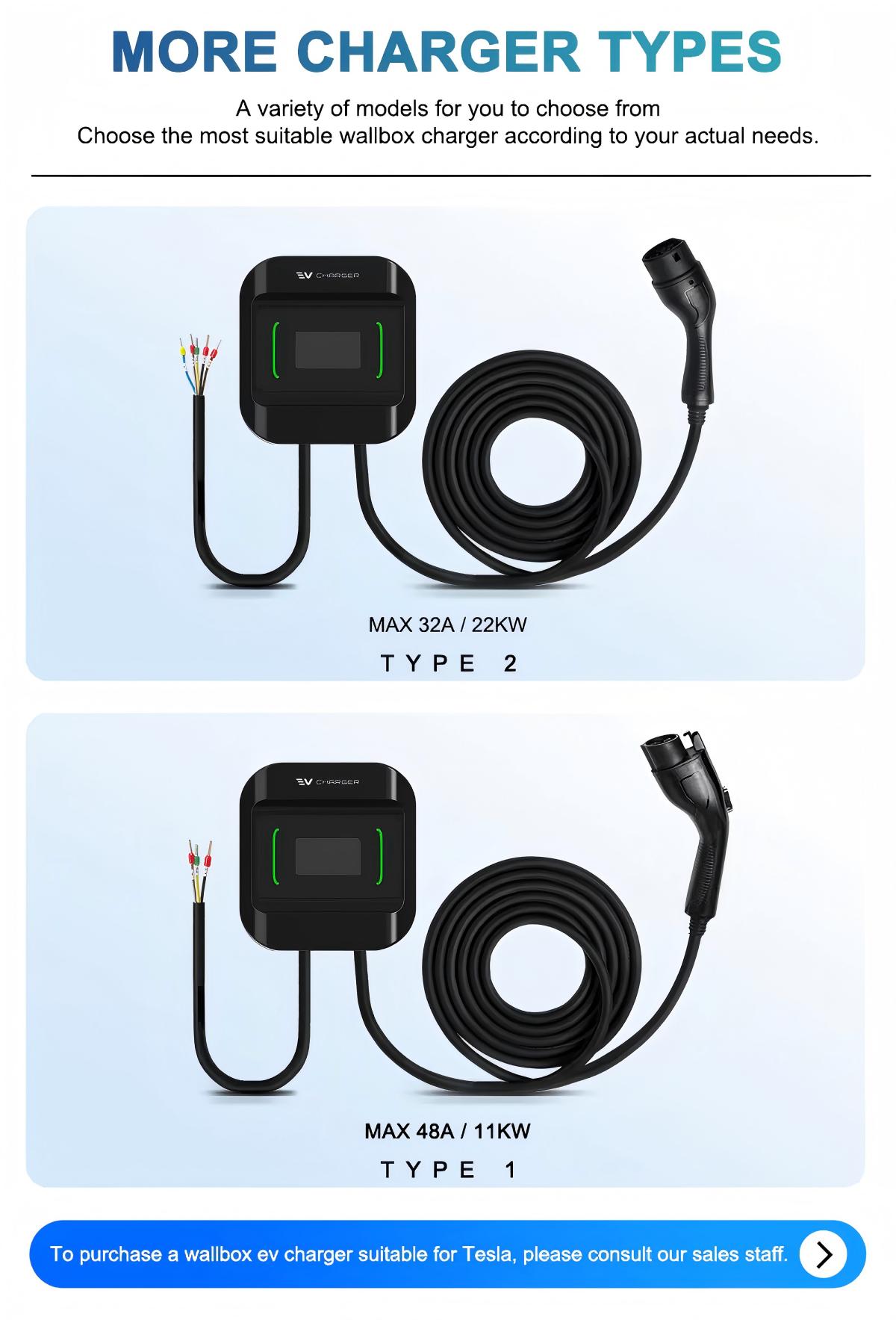

Charger Model & Spec
|
Model No. |
Voltage/Current |
Power |
Charging Cable Spec |
Certificate |
| VCS-Z41-7S |
AC 220V/32A |
7kW |
3x6.0mm² + 2x0.5mm² |
CE, ROHS, UKCA |
| VCS-Z41-11S |
AC 480V/16A |
11kW |
5x2.5mm² + 2x0.5mm² |
CE, ROHS, UKCA |
| VCS-Z41-22S |
AC 480V/32A |
22KW |
5x6mm² + 2x0.5mm² |
CE, ROHS, UKCA |
| Certificates & QC | CE(ICR lab), UKCA, RoHS , ISO, ETL, FCC, Energy Star, UL(Cable) |
| Protection rank | IP65 Cable; IP65 Station |

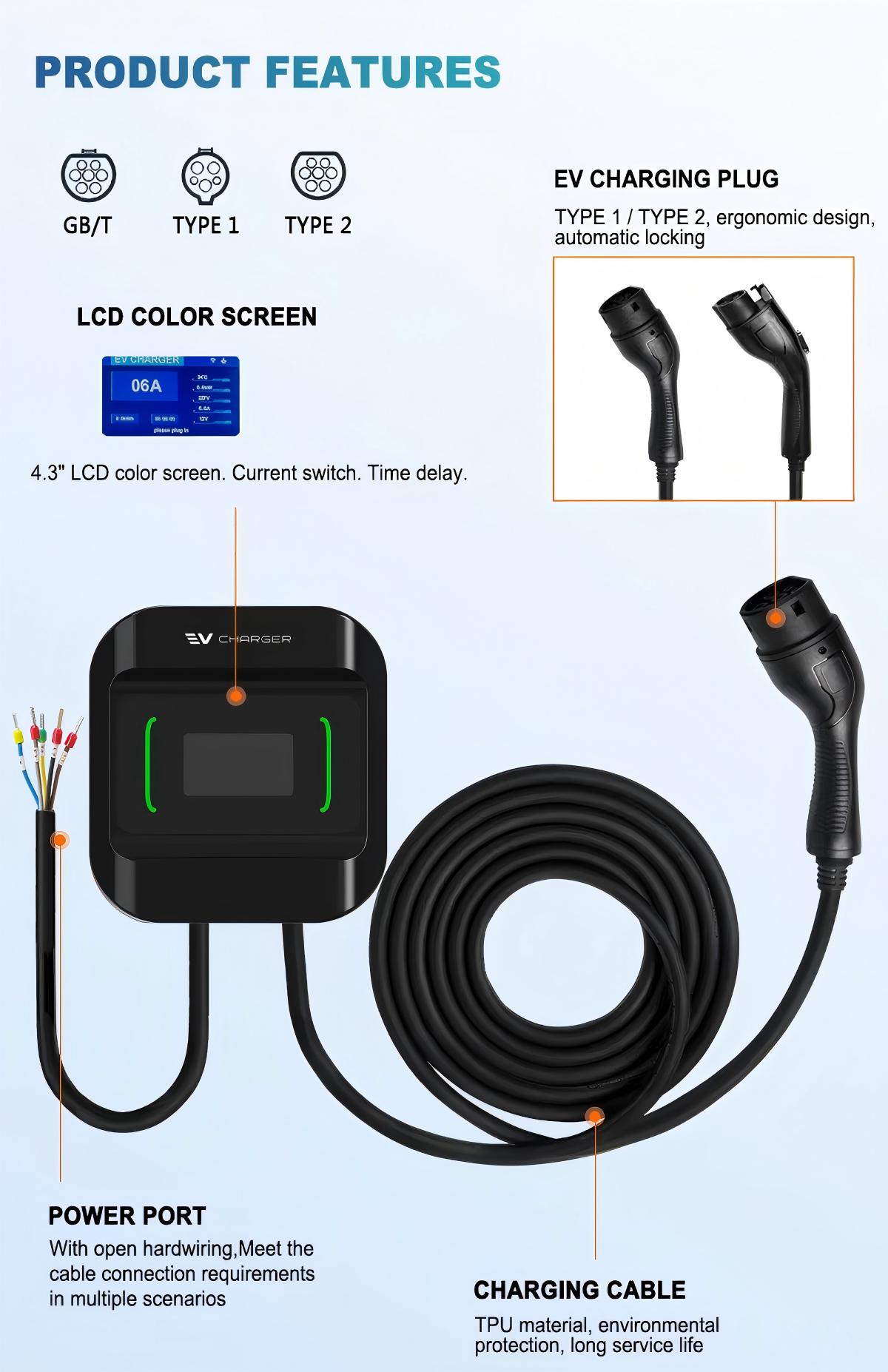

| LCD display | 4.3" LCD color screen |
| LED indicator | blue / red / green |
| RCD | 30m A AC |
| Input power | AC 250 - 480 V max |
| Charging cable | 5M Type 2 (TPU Jacket) |
| Power cord | open ready to wire into electricity |

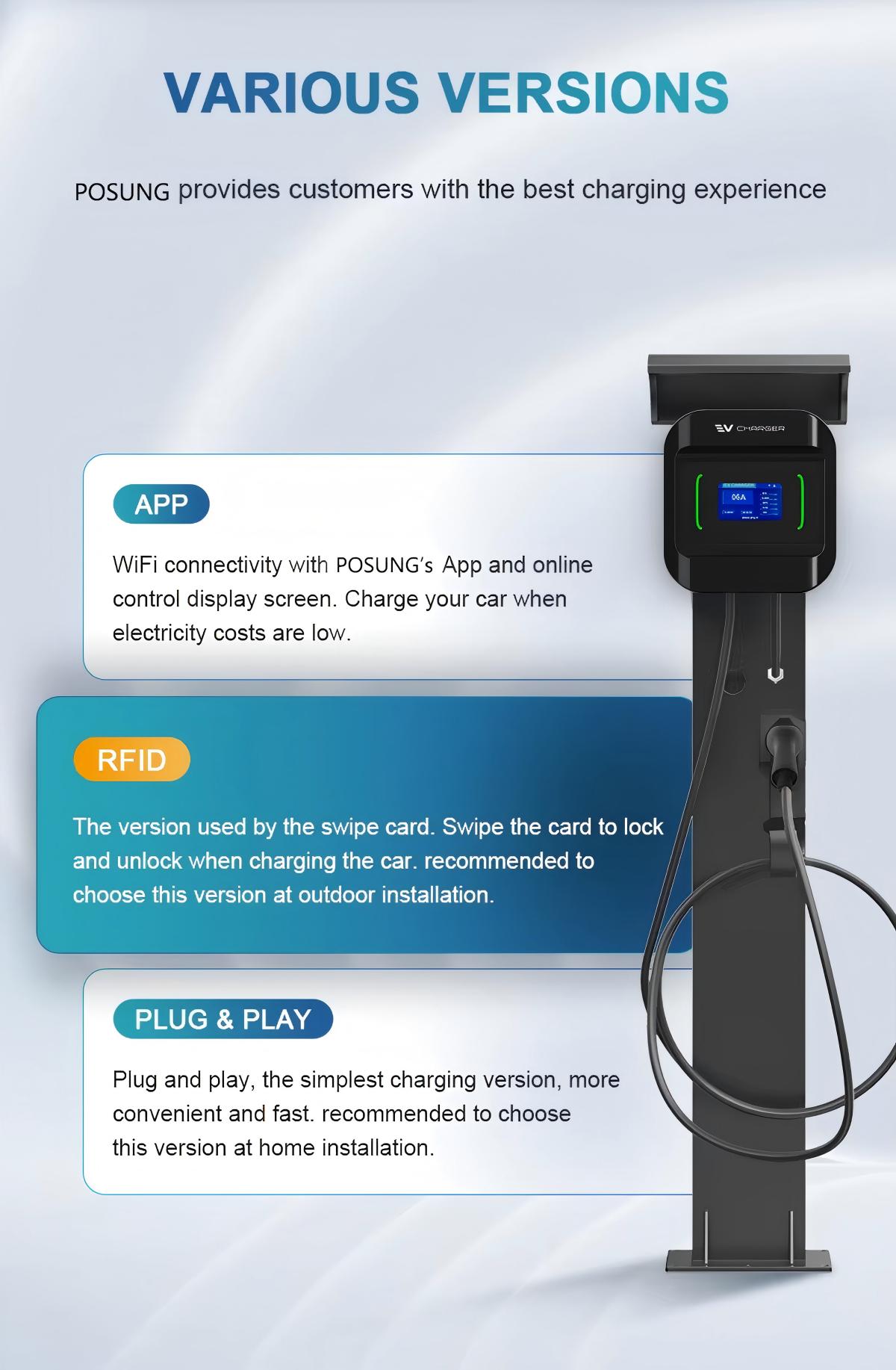

| Start mode | Card swipe / APP / Plug & play |

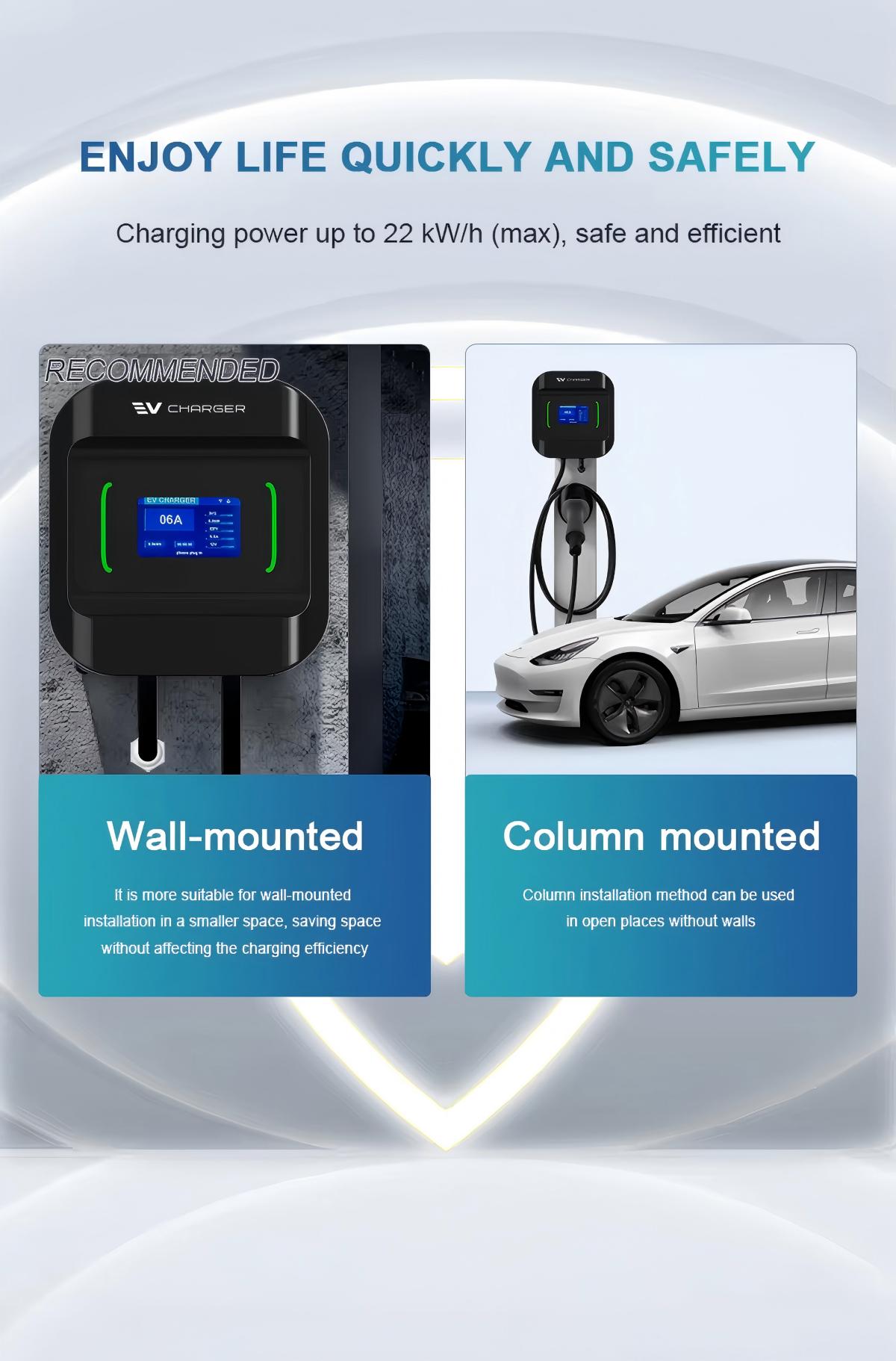

| Station size | L250xW250xH90 (mm) |
| Warranty | 2 years (both cable and station) |
| lead time | 30-35 days after deposit payment |
| Payment Terms | T/T(30% advanced payment ,the rest 70% balance should be paid before shippment) |

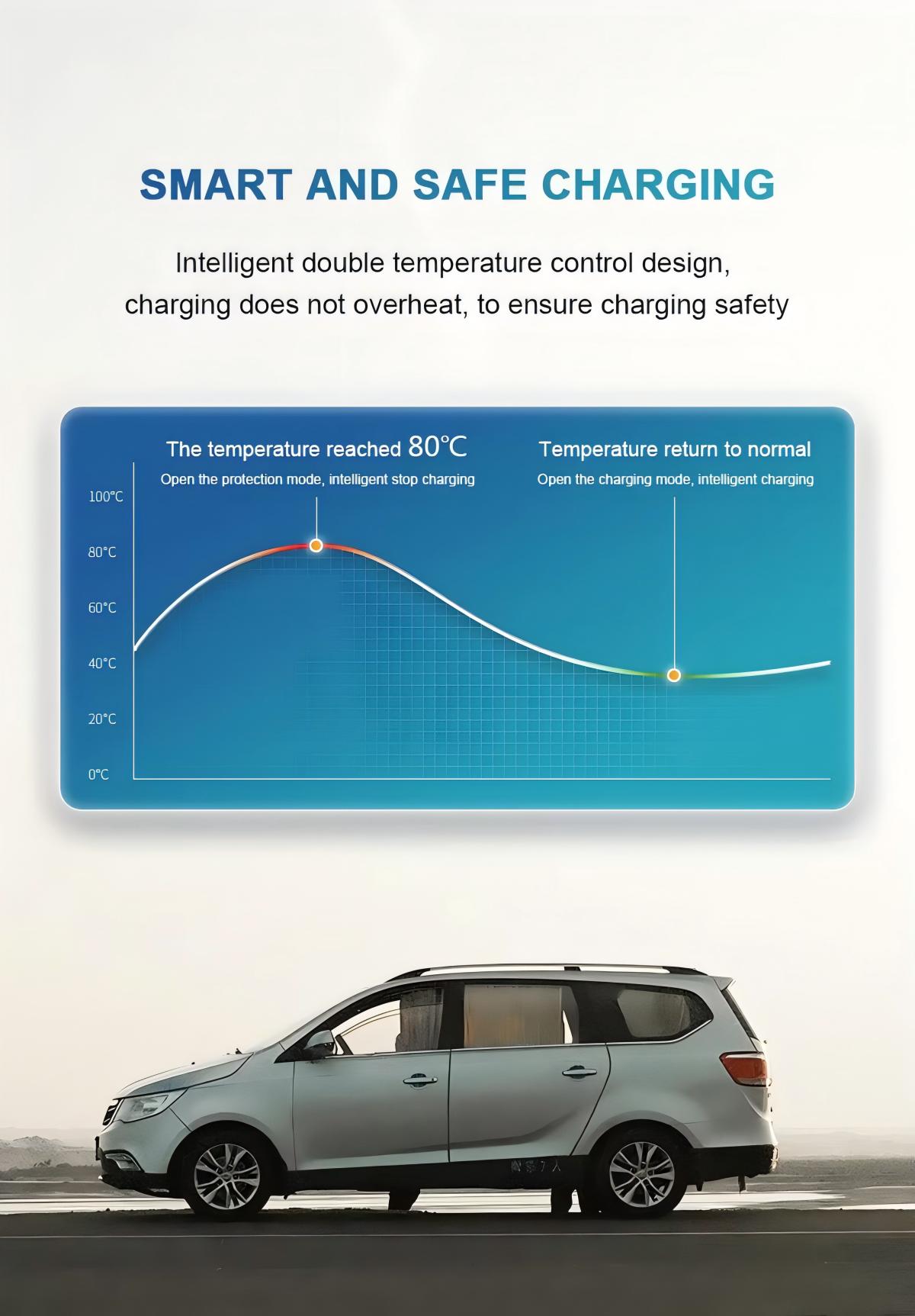

| Electrical Protection | Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
| Materials Applied | Shell: by thermoplastic PC 94V-0. Anti-corrosion and abrasion protection. Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark. |
| Customizing Logo | Logo put on shell by laser on station box or cable head |
| Package | Each in inner carton box, then 1 inner carton into 1 master carton |
| Features | RCD protection: Type B(30mAAC/CCID20+6mADC) Charging status and working error displayed by LED indicators. |
CAUTION
1.Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
