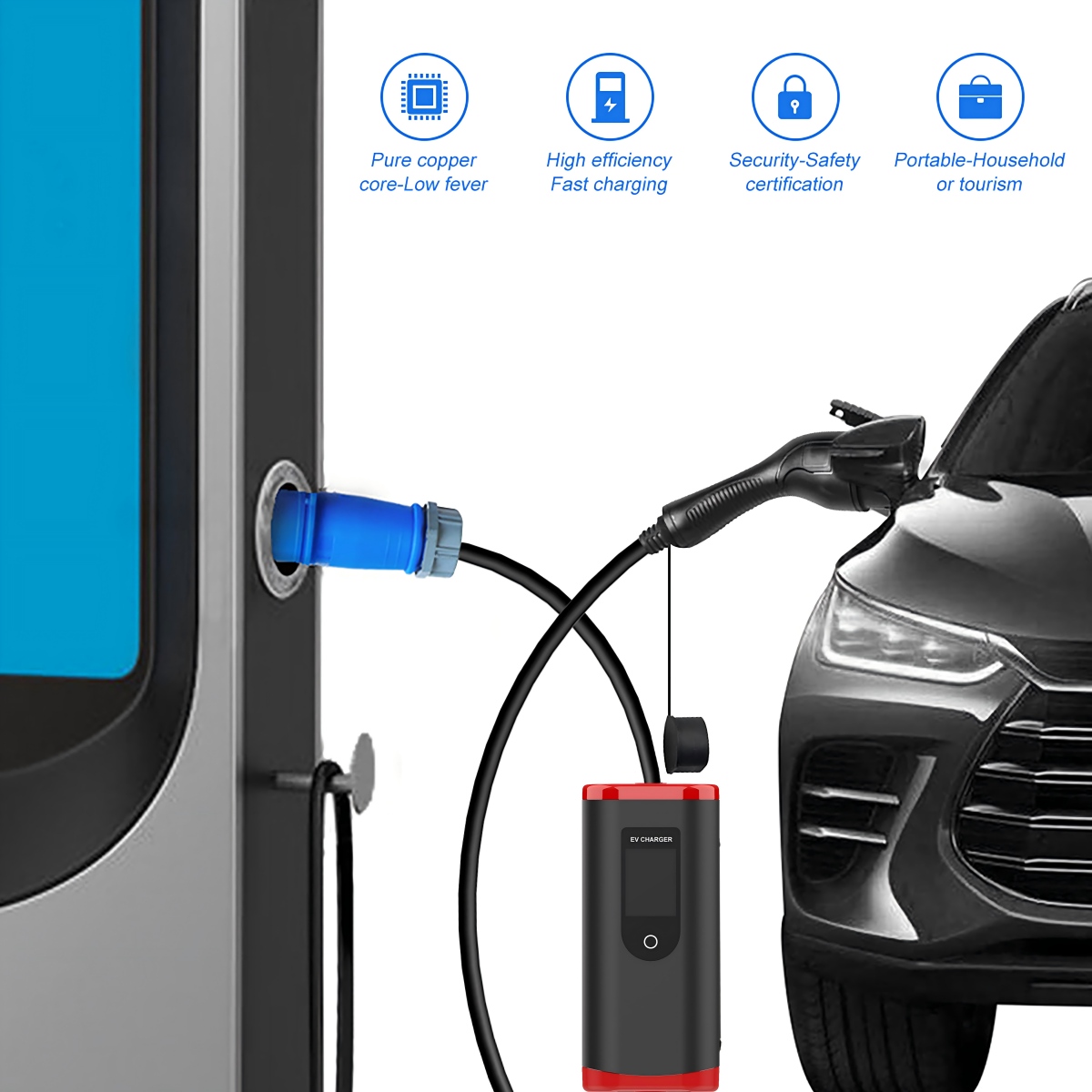

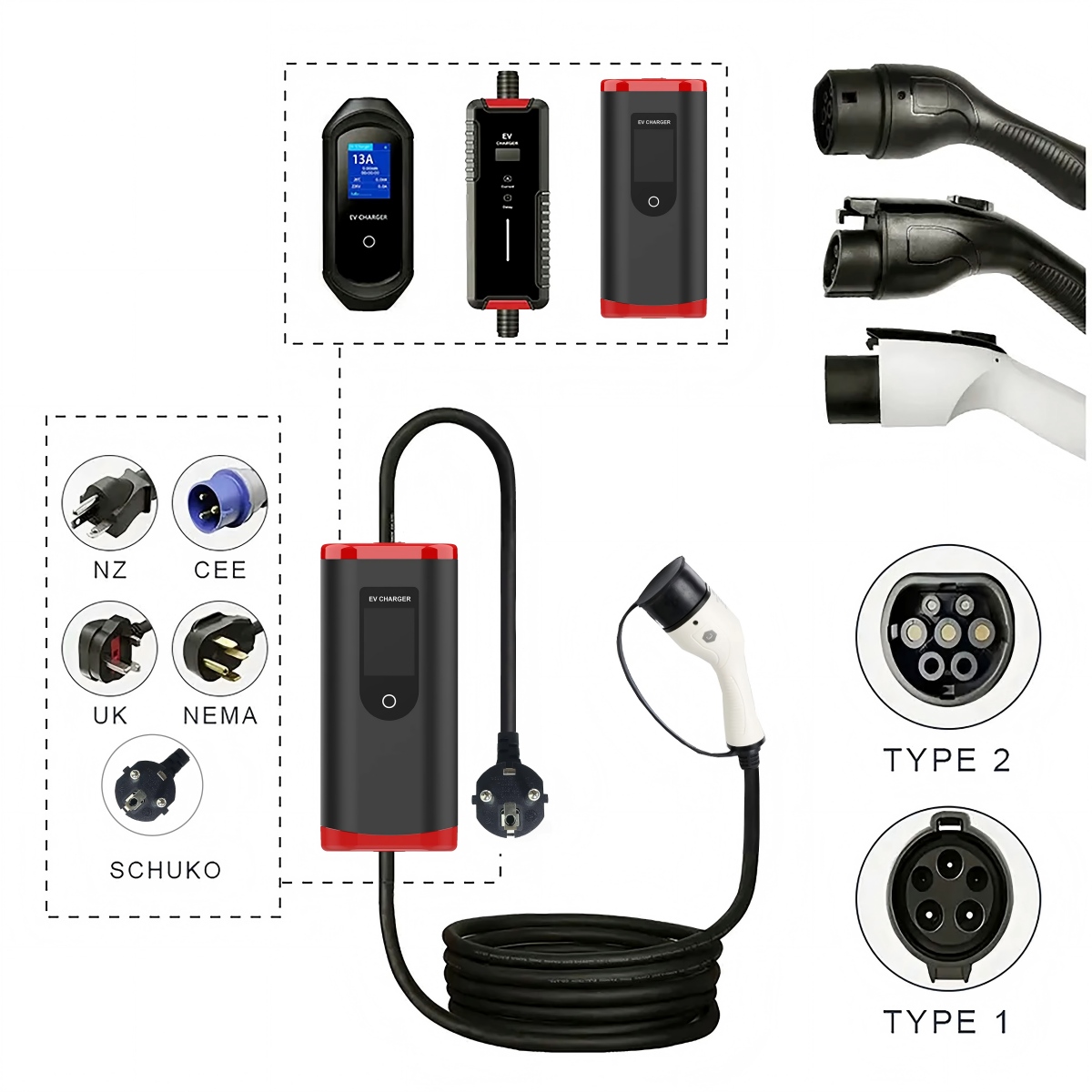

AUXUS Electric Car Charger Station 3 Phase 32a Ev Charger Fast Portable EV Charger 22kw Type2 Portable Charging Station
Specifications
| Interface Standard | TYPE 2 | Output Power | 22 kW(29.50hp) |
| Input Voltage | AC 380-440V | Output Current | 32A |
| Condition | New | Purpose | for replace/repair |
| Brand Name | Posung | Model Number | VPC-B2-22C |
| Place of Origin | Guangdong, China | Place of Origin | Shantou, China |
| ICCB Protection rank | IP65 | Cable Protection rank | IP55 |
| LCD display | 2.4'' LCD screen | Charging cable | 4.5M Type 2 (TPU Jacket) or customization |
| LED indicator | red / blue / green | ICCB size | L220xW100xH60 (mm) |
| Certificate | CE, ROHS | Operating temperature | -30℃ to 50℃ |
| Input power | 440V max |
Type 2 Charger Model & Spec
|
Model No. |
Rated Current |
Power |
Rated Voltage |
Certificate |
| VPC-B2-16AC |
16A |
3.5kW |
200-250V |
CE, ROHS |
| VPC-B2-32AC |
32A |
7kW |
200-250V |
CE, ROHS |
| PC-B2-11C |
16A |
11kW |
380-440V |
CE, ROHS |
| Certificates & QC | CE(ICR lab), UKCA, RoHS,TUV mark, ISO |
| ICCB Protection rank | IP65 |
| Cable Protection rank | IP55 |
| LCD display | 2.4" LCD Screen |
| LED indicator | Red/ Blue / Green |
| RCD | 30ma AC++6ma DC |
| Input power | 250V max |
| Charging cable | 4.5M Type 2 (TPU Jacket) or customization |
| ICCB size | L220xW100xH60 (mm) |
| Start mode | plug & play |
| Operating temperature | -30℃ to 50℃ |
| Warranty | 2 years (both cable and ICCB) |
| lead time | 30-35 days after deposit payment |
| Q'ty basis | based on 200pcs+ each, if lower than 200pcs, price with $2/PCS up, MOQ 20pcs each type |
| Payment Terms | T/T(30% advanced payment ,the rest 70% balance should be paid before shippment) |
|
Electrical Protection |
Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
| Materials Applied | Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection. Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark. |
| Customizing Logo | Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by printing |
|
Package |
Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost) |
|
Features |
New upgraded model; Simple and exquiste appearance; IP65, Weather proof; Leakage current protection; Current Switch, Time delay Charging status and working error simply displayed by LED indicators and LCD screen Optional function of current choice button to switch current from 16A-32A |
EN Standard Strong Patience.
The charging cable meets the latest EN
standard request of an electric vehicle
charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c,
therefore withstanding colder conditio-ns.

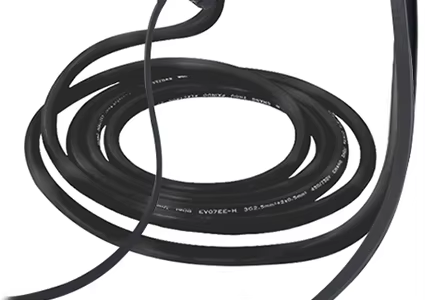

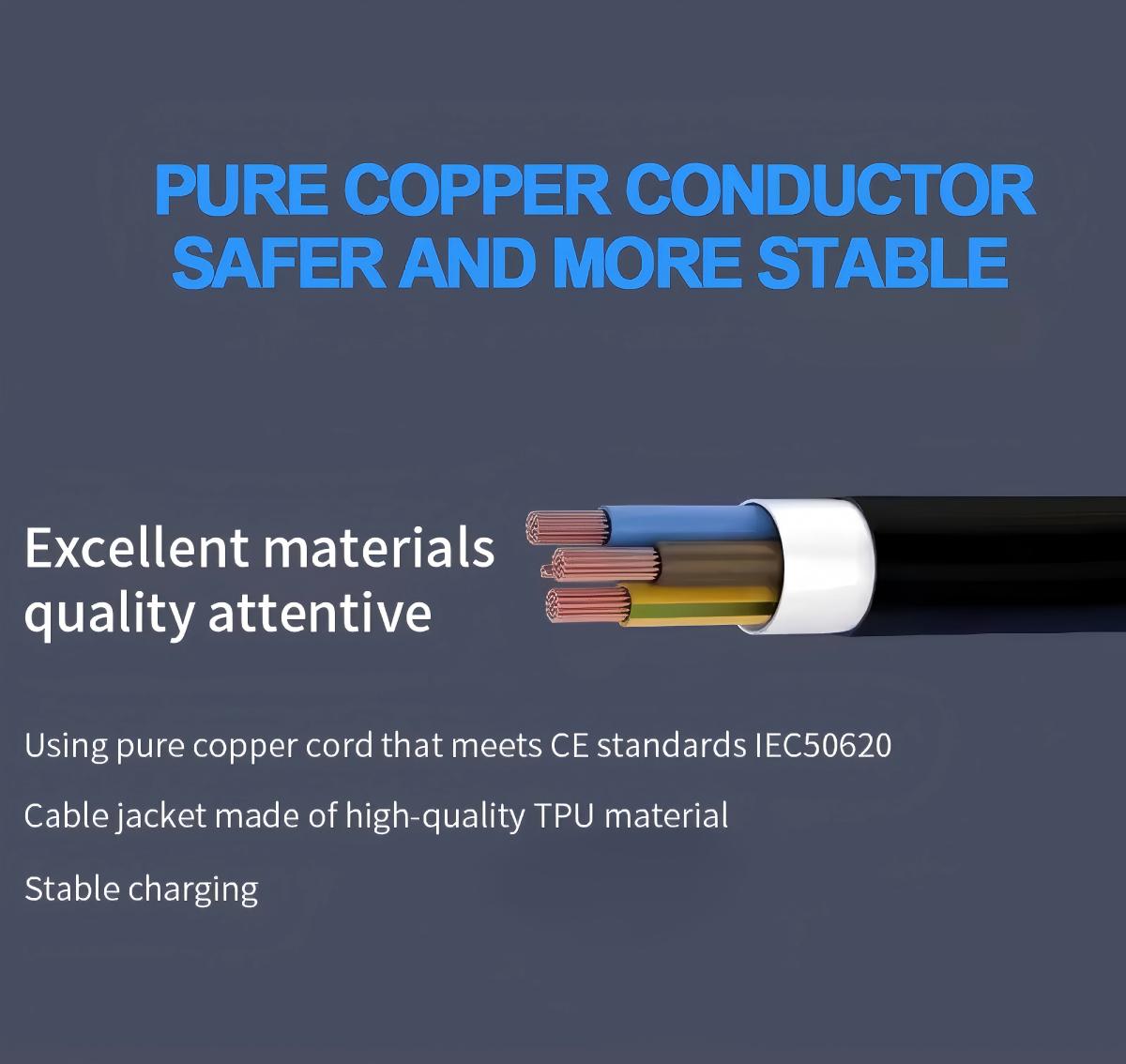

TPU Cable.
Highly resistant to bending, protecting
the internal wiring harness to function
normally under repeated bending
conditions.
ClimateFriendlyStronger&Anti-aging.
Thehalogen-freechargingcableisclimate
friendly,meeting theEU'sandUSA's
environmentalstandards.Thetight,strong
molecularstructureprovidesa long-lasting
chargingcablesolution,ensuringgreaterservice
life.

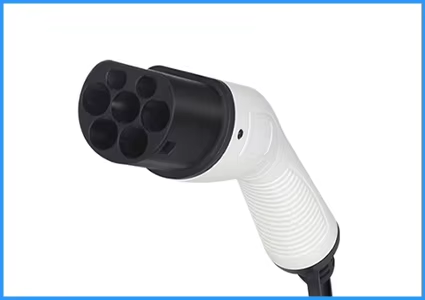

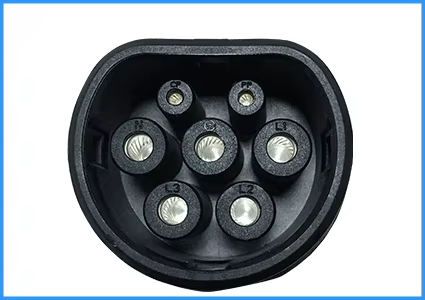

ArcingDesign
Unique self-cleaning' design
ensures that impurities on the
surface of the pins can be removed
during each plug-inprocess.

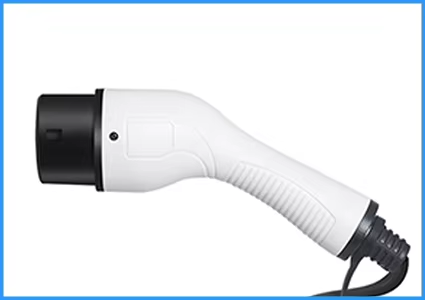

ErgonomicDesign
andIntegratedDesign
Angled horizontal bending design,
in linewiththehabitofmanual force
whichallowsforconvenientplugging&
unplugging.
K10ratedwithanintegrateddesignensuring
thatyoucanchargesafelyinallweather
conditions.
BetterConductivity
Silverplatingonthepins ensuresgreater
conductivity,charging efficiencyand
reducesheatgeneration.
TemperatureMonitoring
Detectsif the temperatureishigher
thanthe‘setsafe'value,if thisoccurs
thecurrentwillautomaticallybecutoff
CAUTION
1.Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
