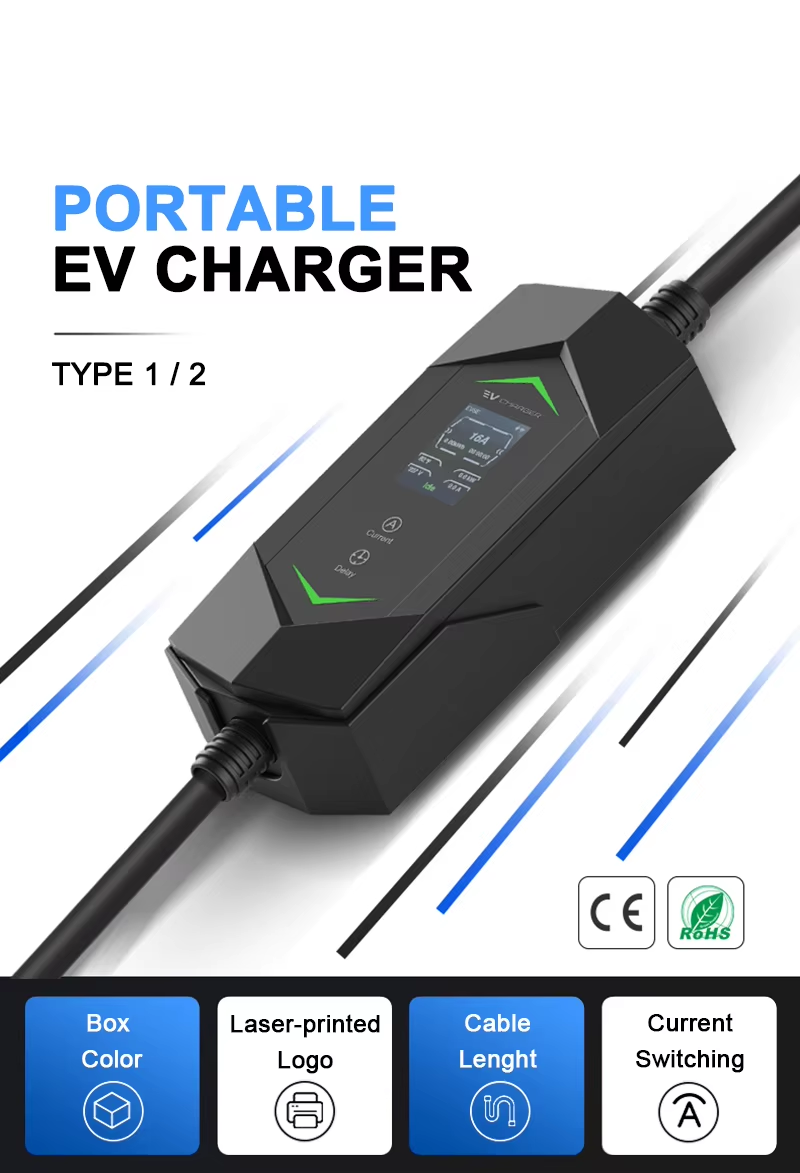

Portable EV Charger 40A 9KW Fast EV Charger Type 1 Level 2 Electric Car Charger EVSE Auto Portable Electric Car Charging Station
Specifications
| Interface Standard | TYPE 1 | Output Power | 9 kW(12.07hp) |
| Input Voltage | 240V | Output Current | AC |
| Condition | New | Purpose | for replace/repair |
| Brand Name | Posung | Model Number | UPC-B5-40AC |
| Place of Origin | Guangdong, China | Place of Origin | Shantou, China |

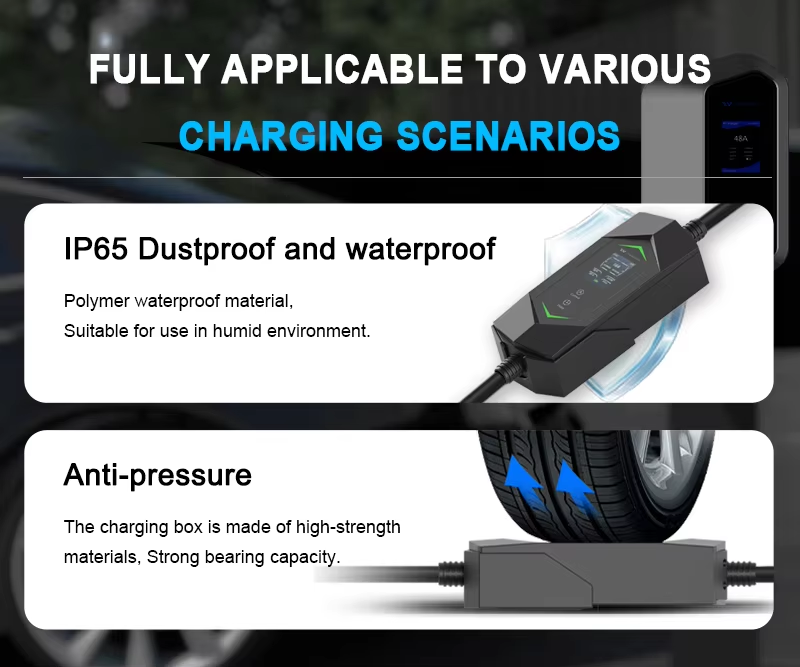

| ICCB Protection rank | IP65 | Cable Protection rank | IP54 |
| LCD display | 2.4'' LCD screen | Charging cable | 4.5M Type 2 (TPU Jacket) or customization |
| LED indicator | red / blue / green | ICCB size | L230xW95xH55 (mm) |
| Certificate | CE(ICR lab), UKCA, ROHS ISO, REACH | Operating temperature | -30℃ to 50℃ |
| RCD | 30m AAC | Warranty | 2 years(both cable and ICCB) |

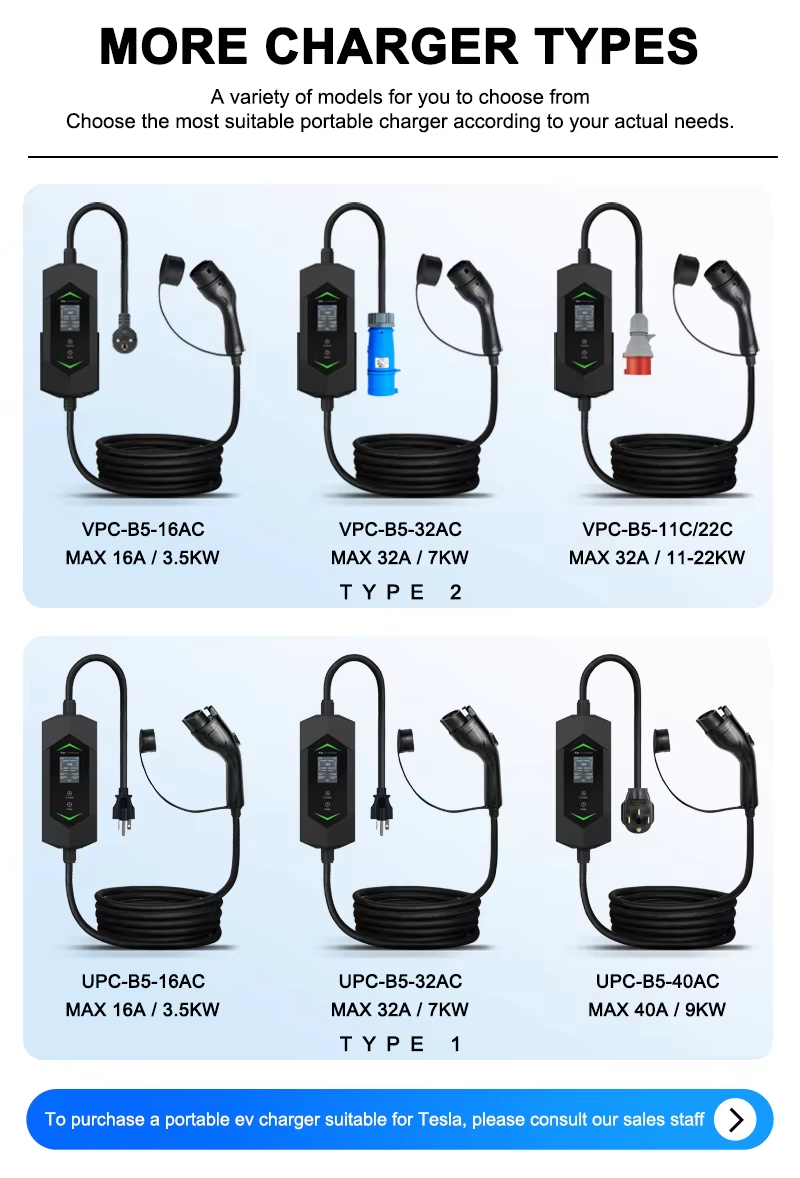

Charger Model & Spec
|
Model No. |
Rated Current |
Power |
Charging Cable |
Certificate |
| UPC-B5-16AC |
8-16A |
1.7-3.5kW |
AC 110V |
CE, ROHS, UKCA |
| UPC-B5-32AC |
8-32A |
1.7-7kW |
AC 240V |
CE, ROHS, UKCA |
| UPC-B5-40AC |
8-40A |
1.7-9kW |
AC 240V |
CE, ROHS, UKCA |
| Certificates & QC | CE(ICR lab), UKCA, ROHS，ISO, REACH |
| Protection rank (ICCB) | IP65 ICCB |
| Protection rank (Cable) | IP54 Cable |
| LCD display | 2.4'' LCD screen |
| LED indicator | blue / red / green |
| RCD | 30m A AC |
| Input power | 250V max |
| Charging cable | 4.5M Type 2 (TPU Jacket) |
| ICCB size | L230 * W95 * H55 (mm) |
| Start mode | plug & play |
| Operating temperature | -35℃ to 50℃ |
| Warranty | 2 years (both cable and ICCB) |
| lead time | 30-35 days after deposit payment |
| Q'ty basis | based on 500pcs+ each, if lower than 500pcs, price with $2/PCS up, MOQ 100pcs each type |
| Payment Terms | T/T(30% advanced payment ,the rest 70% balance should be paid before shippment) |

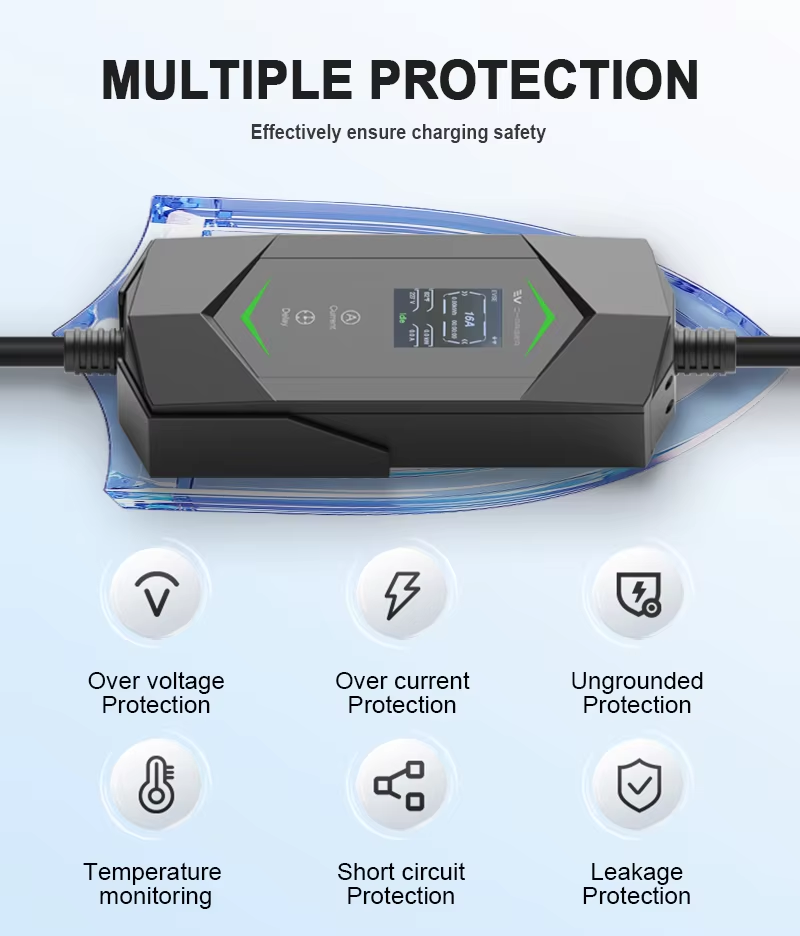

| Electrical Protection | Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
| Materials Applied | Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection. Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark. |
| Customizing Logo | Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by printing |
| Package | Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost) |

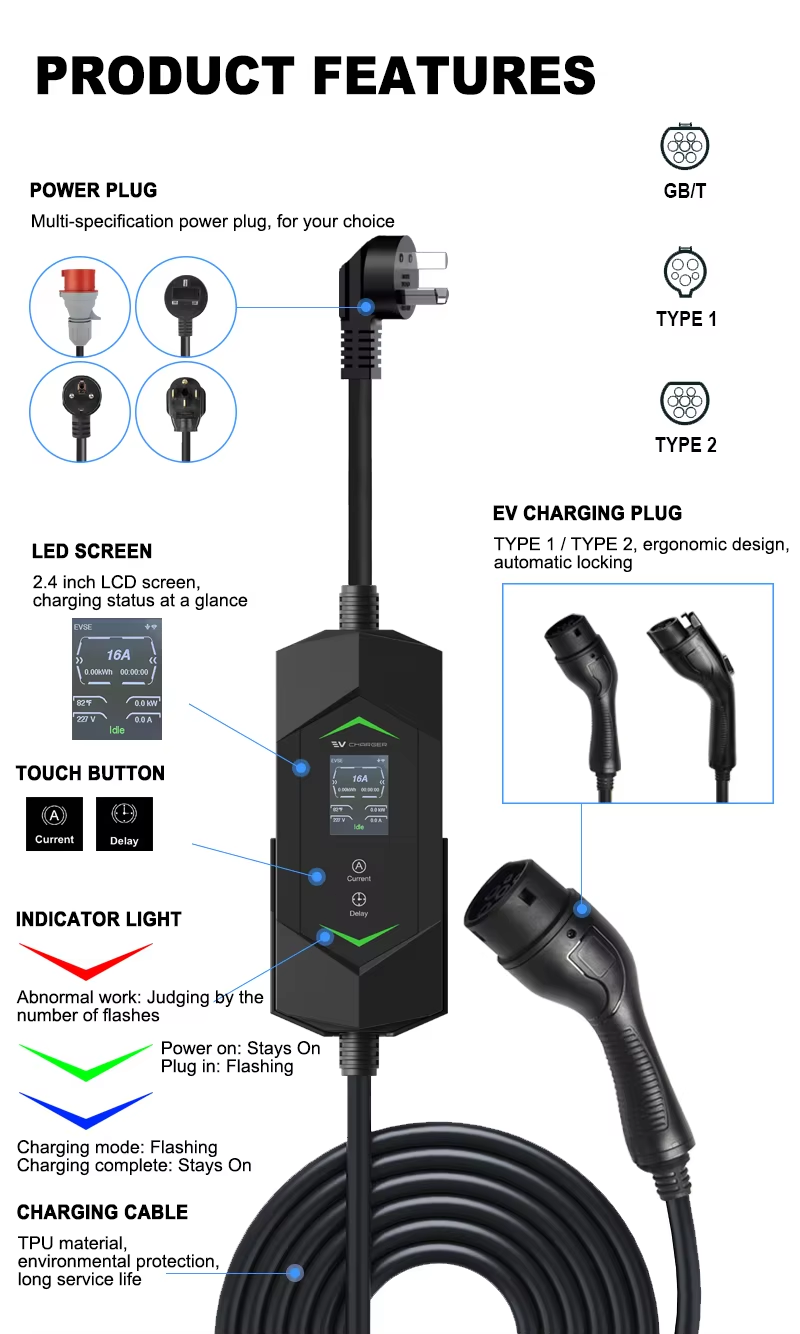

| Features | Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP67, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen Optional function of current choice button to switch current from 8A-32A |

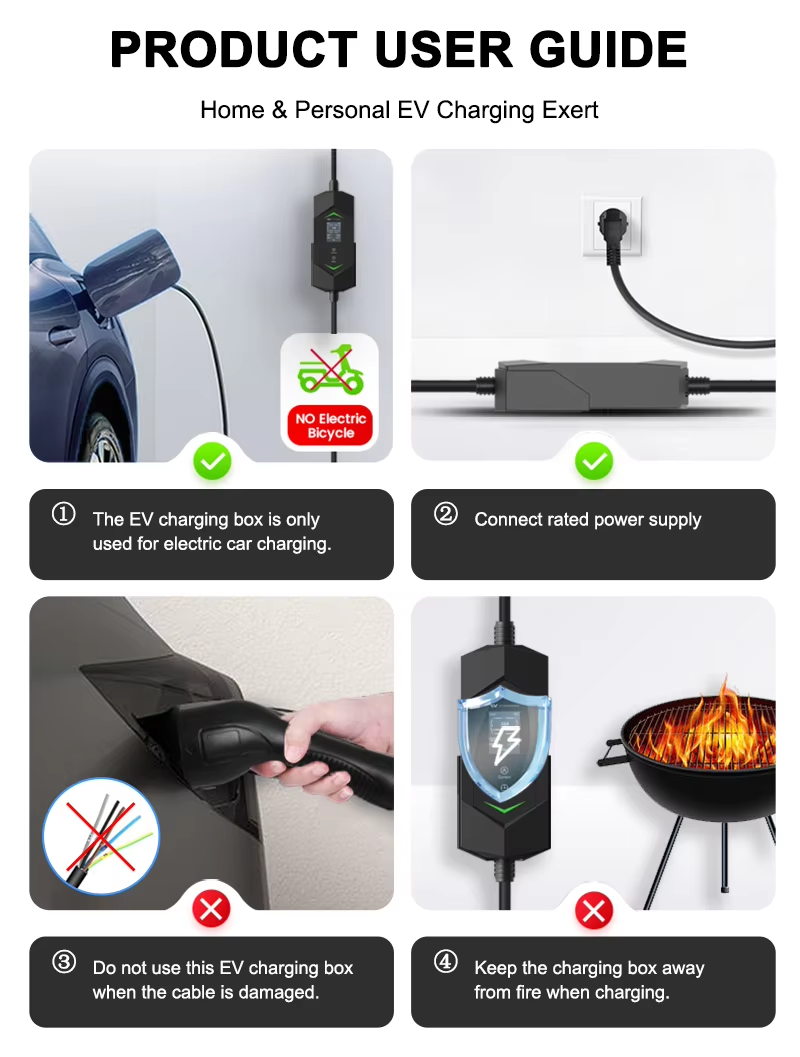

CAUTION
1.Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
