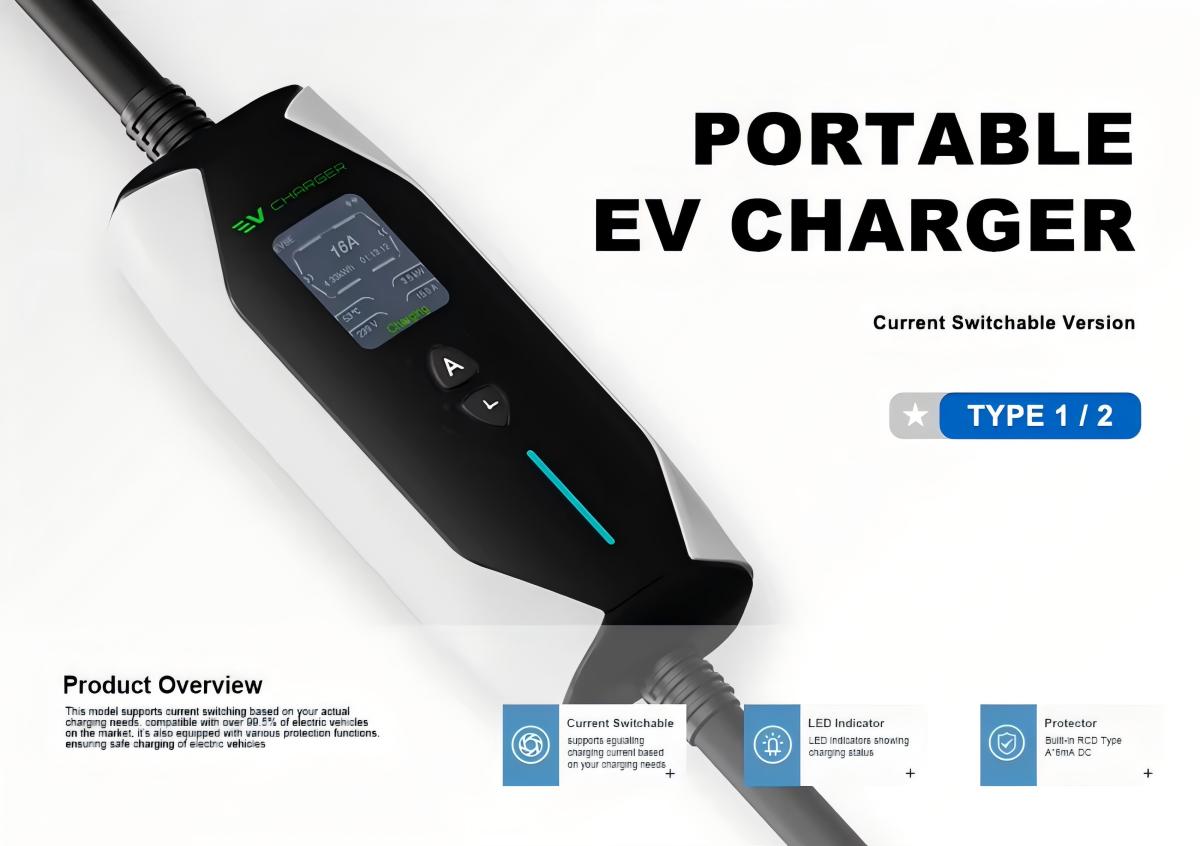

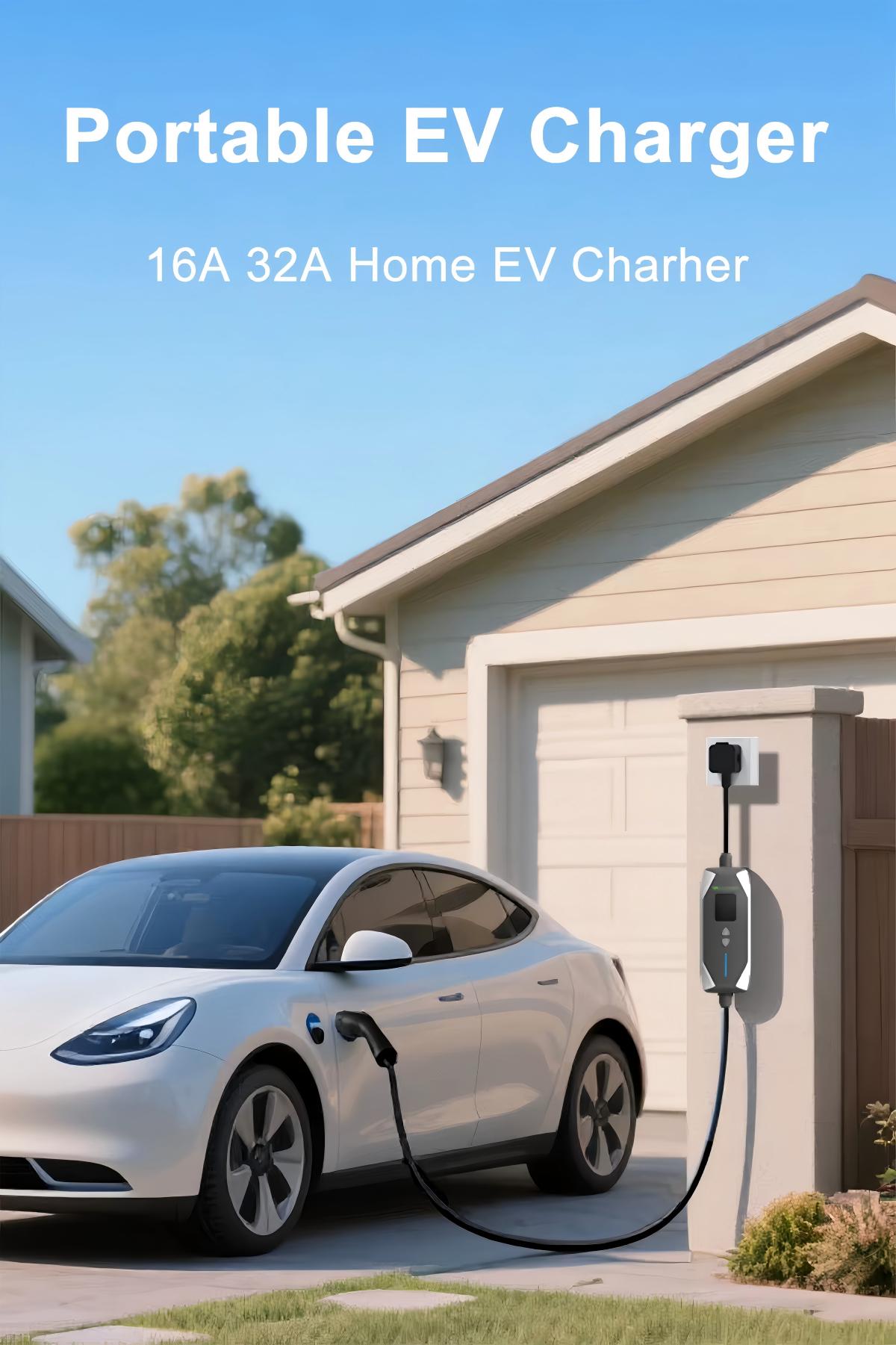

16A 32A 3.5KW 7KW GBT EV Charger Electric Vehicle Fast Charging Station EVSE Portable EV Charger

Key Attributes

Product Detail

Product Tags

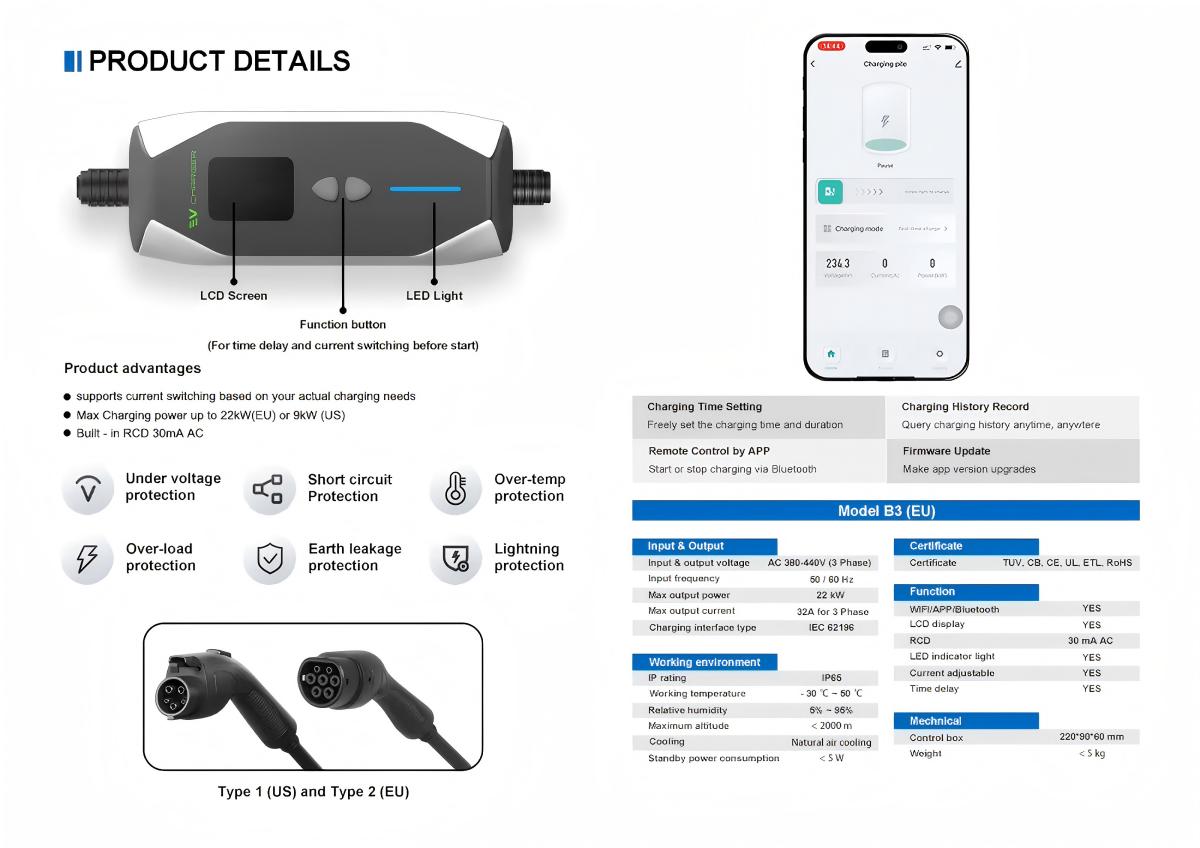

Specifications

Interface Standard	TYPE 2	Output Power	7 kW(9.39hp)
Input Voltage	AC 200-250V	Output Current	32A
Condition	New	Purpose	for replace/repair
Brand Name	Posung	Model Number	VPC-B3-32AC
Place of Origin	Guangdong, China	Place of Origin	Shantou, China
ICCB Protection rank	IP65	Cable Protection rank	IP55
LCD display	2.4'' LCD screen	Charging cable	4.5M Type 2 (TPU Jacket) or customization
LED indicator	red / blue / green	ICCB size	L225xW95xH60 (mm)
Certificate	TUV-Mark, CB, CE, RoHS, UKCA, ETL, FCC, Energy Star, UL(Cable)	Operating temperature	-30℃ to 50℃
Product features	New mold,2.4"LCD screen; Current switch; Time delay.

IEC 62196 TYPE 2 Charger Model & Spec

Model No.	Rated Current	Power	Rated Voltage	Certificate
VPC-B3-16AC	8-16A Adjustable	3.5kW	AC 200-250V	TUV-Mark、CB、CE、RoHS、UKCA ETL、FCC、UL(Cable)、Energy Star
VPC-B3-32AC	8-32A Adjustable	7kW

Certificates & QC	TUV-Mark、CB、CE、RoHS、UKCA ETL、FCC、UL(Cable)、Energy Star
ICCB Protection rank	IP65
Cable Protection rank	IP55
LCD display	2.4" LCD Screen
LED indicator	Red/ Blue / Green
RCD	30ma AC++6ma DC
Input power	AC 200-250V
Charging cable	4.5M Type 1 (TPU Jacket) or customization
ICCB size	L225xW90xH60 (mm)
Start mode	plug & play
Operating temperature	-30℃ to 50℃
Warranty	2 years (both cable and ICCB)
lead time	30-35 days after deposit payment
Q'ty basis	based on 200pcs+ each, if lower than 200pcs, price with $2/PCS up, MOQ 20pcs each type
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection. Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by printing
Package	Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost)
Features	New upgraded model; Simple and exquiste appearance; IP65, Weather proof; Leakage current protection; Current Switch, Time delay Charging status and working error simply displayed by LED indicators and LCD screen Optional function of current choice button to switch current from 16A-32A

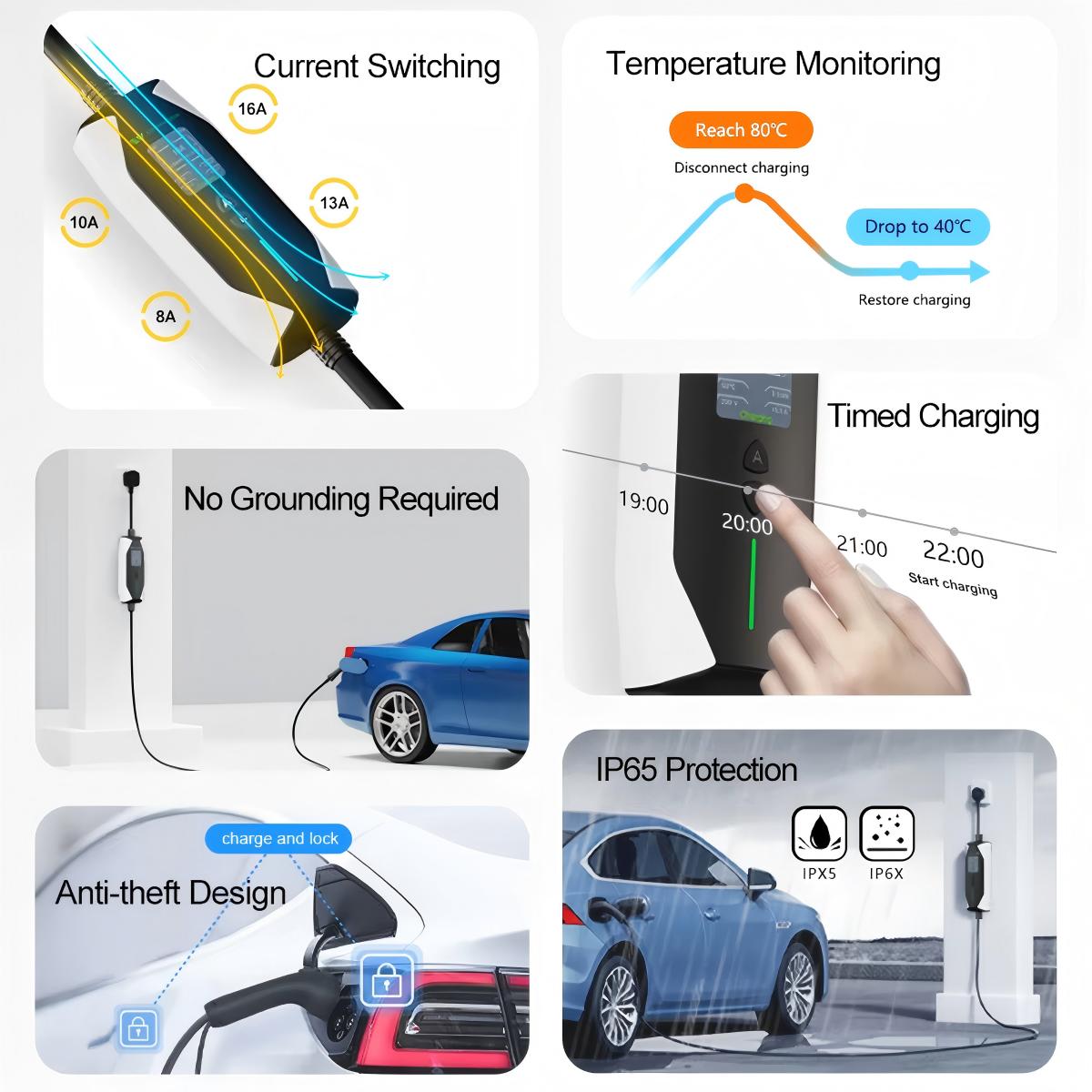

Temperature Monitoring

Detects if the temperature is higher

than the ‘set safe’ value, if this occurs,

the current will automatically be cut off.

CAUTION

1.Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
